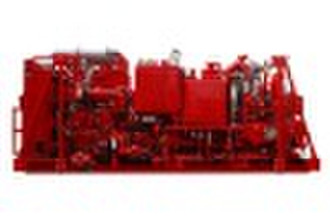

Offshore (Zone-II) Double Pump Cementing Skid

The model PCS-522A system is a skid mounted complete mixing and pumping unit and it is designed for offshore drilling platform Zone II area which has potentially explosive atmospheres.This unit is state-of-art in mixing and automatic control .This system is designed for the most demanding oil and gas well cementing requirements.The quality of design,component selection,and quality manufacture makes it a benchmark in the industry. The high energy mixing system can mix the most difficult slurries and the automatic density control will provided superior density control. The 20 bbl averaging tank makes the operator's job easier, provides a cushion for fluctuations in bulk delivery, and provides excellent density and additive concentration averaging. This system is designed for minimum maintenance and operating in extremely harsh environment with temperatures ranging from -30OC to 50 OC and relative humidity up to 90%. Specification The PCS-621B Double Pump Cementing Skid comprises of the following components. Two (2) Catpilliar 3406C ZONE-II engines, 490 HP@2100RPM each Two (2) AVTEC HT750 (equivalent to Allison HT750) automatic transmission One (1) Serva TPD600X3 Plunger Triplex Pumps One (1) Serva TPD600X4 1/2 Plunger Triplex Pumps Two (2) Spicer 1800 series drive shafts One (1) 7 bbl mixing tank with one (1) 20 bbl averaging tank One (1) 2x10 bbl displacement tank One (1) Mission 6x5 Centrifugal Pump (cement mixing recirculation) One (1) Mission 6x5 Centrifugal Pump (boost to triplex pump) One (1) Mission 4x3 Centrifugal Pump (mix water and displacement fluid) Close-loop Hydraulic System High Energy Mixing System Automatic Control Mixing System(ACM-IV.1) for density One (1) Air reservoir, 20 gal One (1) Fuel day tank 150 gal, separated placed Performance Weight Approx. 25t (55,000 lbs) Dimension 26.3ft(L)X8.5ft(W)X10.5 ft(H) Max. Pres 15000 psi (100 MPa, 3 fluid end) Max. Flow 792.5gallons/min (18.8 BMP) (W/ one 3 and one 4 1/2 Fluid End) Density Range 1.02.5 g/cm3±0.012 g/cm3(8.33-21 PPG) Mixing Capacity 014.5 BPM (0-607.59gallons/min) Working Temp. -30ºC-50ºC
