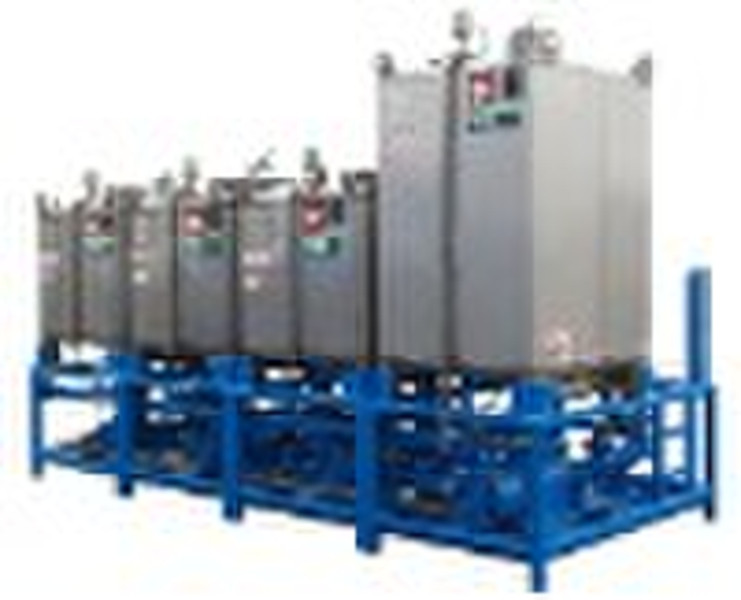

Continuous Liquid Additive Skid

Theadditive skidis designed to continuously add liquid additives into the slurry during the process of offshore or inland oilfield cement jobs. It greatly simplifies the storage of base cement materials. The system makes it possible to satisfy various cement jobs that have different technical requirements with only one grade of cement material stored. The LAS system is a more scientific and rational solution to liquid additive addition. In addition, the LAS system is the most common practice introduced by many the major cementing companies. For a specific cement job, first input into the programmable controller parameters for additive and its proportion. The Serva LAS system automatically delivers the desired amount of each kind of additive in accordance with the flow rate detected from the cement pumping skid (truck). It is more convenient and less costly than the regular practice because the system ensures the slurry is strictly made up according to the real amount required for a cement job. It reduces the amount of liquid additives usage and also helps protect the environment (less disposal of unused material). SPECIFICATION Total Weight 9240 lbs Overall Dimension 20 ft (L) x 6.6 ft (W) x 9.7ft (H) Voltage 380v/50hz or 460v/60 hz Electrical Motor Abb 45 kw Hydraulic Pump Parker P2 type heavy duty piston pump Metering Pump Roper screw 71000 series pump Agitators Hydraulic driving, speed range 0-180 rpm SCREW PUMP Pump Pump Pump Pump modular one modular two modular three modular four Model No. 713025 71201 71202 71205 Working Speed (rpm) 200-1200 200-1200 200-1200 100-900 Displacement (gpm) 0.52-3.12 1.72-10.32 4.04-24.24 5.2-46.8 TANK Modular one Modular two Modular three Modular four Leng (inch) 42 42 42 82 Width (inch) 48 48 48 48 High (inch) 51 51 51 51 Volume (gal) 350 350 350 550 CONTROL SYSTEMComputer AB PLC Panel view 6color screen Motor controler NEMA 4 (IP56)
