Cementing Units

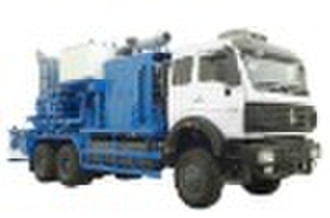

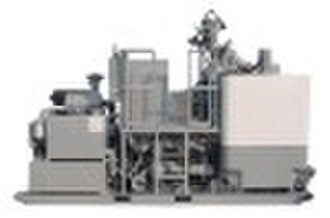

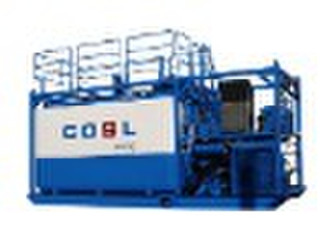

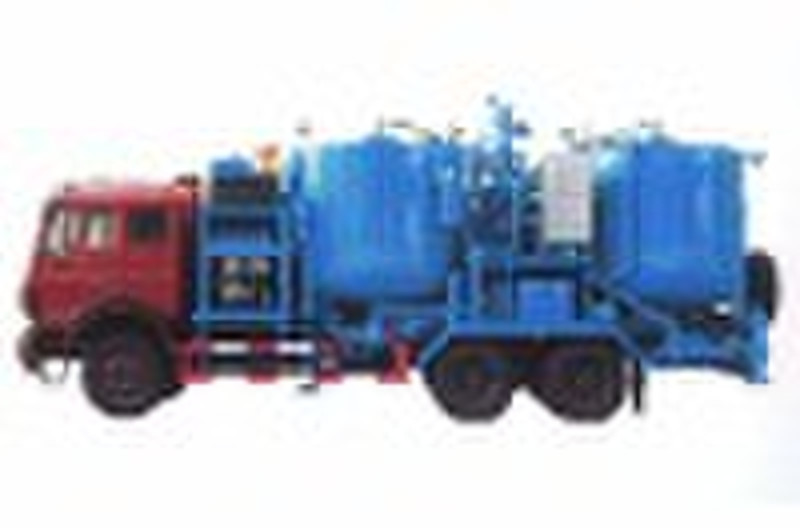

Continuous Batch Mixing TruckPerformanceGeneral performance Dimension33x8 x13feet ( Lx W x H )Weight22 tEngine Power300HP/2200 RPMMixing Capacity79-607gallons/minDensity Range1.3-2.5g/cm³Density Precision+/-0.02 g/cm³Batch Capacity2x50BBLMixing Capacity317gallonsWorking Temperature-20oC +50oC Nitrogen Unit Truck is applicable for fracturing treatment. Specifications Max pressure: 80MPa (11,600PSI) Max flow:118 gal/min (440 L/min) Max discharge Temperature: 10-30 Specification Main technology specification Engine Power 180HP@2500RPM Mixing Capability 79-528 gallons/min Volume 317gallons Average Tank Volume 317gallons Density Range 1.3-2.5 g/cm3 Auto Control Precision +/-0.02 g/cm3 Working Temperature -20OC-50 OC Dimension 13Lx4(W)x 9(H)feet Net Weight 3500 kg Auto Density Control Mixing Skid The ACM-IV liquid level auto control system, ACM-V single key auto control system and cementing unit net-work control system has become the most advanced technology of the world at present. Main technology specification Engine Power 180HP@2500RPM Mixing Capability 79.25-528.3 gallons/min Volume 317gallons Average Tank Volume 317gallons Density Range 1.3-2.5 g/cm3 Auto Control Precision +/-0.02 g/cm3 Working Temperature -20OC-50 OC Dimension 13Lx4.5(W)x 9.38(H)feet Net Weight 3500 kg Single Pump Cementing Truck PerformanceNet Weight 24t(about)Dimension31.82(L)X8.2(W)X13.77(H)feetPressure RangeMax. work pressure 76.2 MPa11,200 Psi,4 1/2fluid endMax. Flow Rate396.25gallons/minDensity Range1.32.5 g/cm3±0.012 g/cm3Mixing capacity84.53/minWork temperature-20ºC-50ºC BatchMixing Skid It is regarded as the economic and substantial edition which is based on continuous batch mixing system without ACM system, and applied to slurry batch mixing work during cement work. Working principle: to realize slurries circulating mixing by recirculating centrifugal pump, at the same time to meet the destination of cementing and dry additive through flexible ejector on the top of tank. The batch mixing tank can be installed two structures: single tank 120BBL or 2X50BBLdouble tank. Performance manual batch mixing single tank double tank dimension(lengthxwidthxheight) 22.47x7.38 x 10.33(feet) 23.62x8.20 x 10.33(feet) G.W About 13t About 11t batch mixing volume 120BBLsingle tank 2x50BBLdouble tank slurry density range 1.3-2.7 g/cm3 1.3-2.7 g/cm3 Working temp. -25 oC 50 oC -25 oC 50 oC Performance manual batch mixing single tank double tank dimension(lengthxwidthxheight) 22.47x8.20 x 10.33(feet) 23.62x 8.20x10.33(feet) G.W About 13t About 11t batch mixing volume 120BBLsingle tank 2x50BBLdouble tank slurry density range 1.3-2.7 g/cm3 1.3-2.7 g/cm3 Working temp. -25 oC 50 oC -25 oC 50 oC
