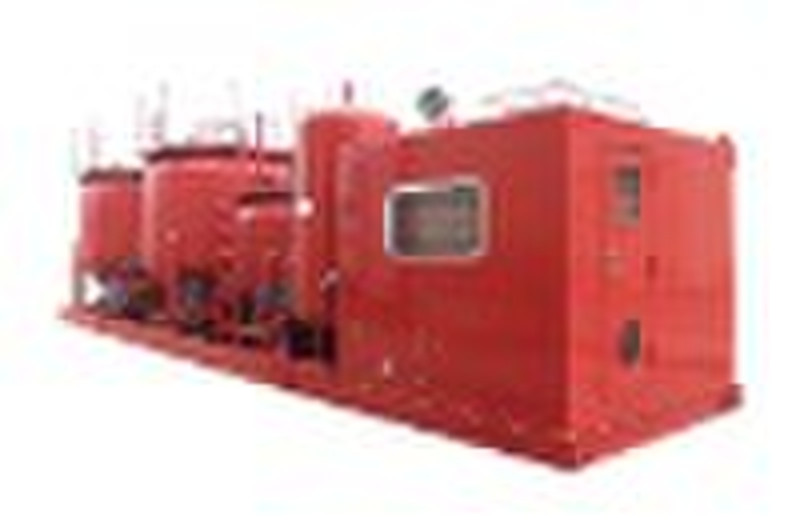

Bulk Cement Blending Skid unit

The system is designed for portablility and can be used in remote development fields as a temporary bulk plant or as part of a permanent facility. Except for cement job designs employing liquid additives, every job will require the blending of neat cement with additives. Additives will be used to increase or decrease density, lower cost, retard, accelerate, or to reduce friction pressure, fluid loss and free water. The accuracy of the addition of the additives and uniformity of the blend can significantly change the desired outcome of the cementing job. GENERAL SPECIFICATION Blending Skid Overall Dimension 29.5 ft (L) x 8.5 ft (W) x 19.4 ft (H) with dust collector installed 29.5 ft (L) x 8.5 ft (W) x 10.8 ft (H) without dust collector installed Compressor Skid Overall Dimension 10.5 ft (L) x 5 ft (W) x 6.8 ft (H) Control Cabin Overall Dimension 19.7ft (L) x 8.4 ft (W) x 8.4 ft (H) Production Capacity 20 tons per hour Blending Tank Volume 350 cubic feet Additive Tank Volume 170 cubic feet BLENDING AIR SYSTEMWorking Pressure 28-43 psi Maximum Pressure 50 psi CONTROL AIR SYSTEMWorking Pressure 100 psi CONTROL SYSTEMComputer Control System manual control system Environment Temperature -29 oC to + 50 oC Power Consuming Rate 3.5 kw per ton
